How to Build a Handmade Radio: A Manual

1. Setting Intentions
2. Network Overview
   • The Network
   • The Internet Radio Toolchain
3. Materials
4. Building a Local Radio
   • Set up the Online Radio Toolchain
   • Optional: Stream VLC to BUTT
   • Optional: Set up SSH
5. Configuring the Public Radio
   • Set Up Port Forwarding
   • Set up Dynamic DNS (DDNS)
   • Update Firewall Settings
   • Optional: Use a Custom Domain
   • Optional: Set Up SSL
6. Glossary

The Network

A “local network” refers to a network within a scoped geographic area like a home or office. Devices within a local network can communicate directly with each other without the Internet using local IP addresses.

Common Terms

Internet Service Provider (ISP): The company that provides your local network with an Internet connection.

Local Network Devices: The devices connected to your local network such as computers, smartphones, and IoT (Internet of Things) devices. The Raspberry Pi is a server within the local network, hosting various services like a web and radio server.

Networking Equipment

• Router: The central device that serves as a gateway that manages traffic between devices in the local network and the Internet. The router assigns local IP addresses to devices on your local network, allowing them to communicate with each other and connect to the Internet.
• Modem: A device that connects the local network to the ISP, translating the Internet signal from your ISP into a format the local network can use.

Network Services

• Domain Name System (DNS): Translates human-readable domain names into IP addresses, allowing users to access websites using domain names instead of numbers.
• Dynamic Host Configuration Protocol (DHCP): Assigns IP addresses dynamically to devices on the network. This ensures that each device gets a unique IP address so devices can communicate within the local network and access the Internet.
• Network Address Translation (NAT): Allows multiple devices in your home to share a single public IP address provided by the ISP. It replaces the private IP addresses of the devices with the public IP address of your router and keeps track of which device requested what data so that the responses are sent to the correct device.
• Firewall: Protects the network by controlling incoming and outgoing traffic based on security rules.

How Does Data Flow?

Most of the data that flows in and out of your home is managed automatically by the network devices.

Let’s picture a Raspberry Pi connected to your home’s local network.

For all outbound traffic from the Pi, like streaming music online, the router assigns a private IP to the Raspberry Pi and uses NAT to replace the private address with the router’s public IP. The request is forwarded to the Internet, traveling through the modem to your ISP to the target server. The target server processes the request, generates a response, and sends it back through the same path. Your router uses NAT to direct the response back to the Pi by replacing its public IP with the Pi’s private IP.

Inbound traffic, such as accessing a website hosted on the Pi, first reaches the router’s public IP address. The router uses NAT to forward the requests to the Raspberry Pi’s local IP address and the appropriate port. The Pi processes the request and sends an appropriate response back through the router. The responses traverse the modem and reach the device that initiated the request.

Beyond the automatic processes handled by the networking equipment, there are additional actions needed to secure external access to services hosted on the Pi:

• Port Forwarding: The router needs to be configured to allow external requests to be directed to specific ports of the internal IP address of the Pi.
• Dynamic DNS (DDNS): Since the router has a dynamic IP address, a hostname from a DDNS provider needs to be associated with the changing IP address for more reliable service.
• Firewalls: Firewalls on both the router the Pi need to be configured to permit incoming connections on the required ports for the specific services.
• SSL Encryption: The website hosted on the Pi needs to implement SSL encryption to secure communications.

The Internet Radio Toolchain

Online radio is usually composed of three parts:

• Stream Generator: The software responsible for creating an audio stream in a specific format, such as MP3 or Ogg Vorbis. It takes input from various sources such as live audio feeds, pre-recorded content, or playlists (ex: BUTT, Liquidsoap, ices, and DarkIce).
• Streaming Media Server: The central hub. It is software that relays audio streams to listeners by receiving input from the stream generator and relaying it to listeners (ex: Icecast).
• Media Player: The software or application used by listeners to access and play the audio stream (ex: VLC, web browsers).

For this project, Broadcast Using This Tool (BUTT) is the stream generator. It captures and encodes audio to send to the Icecast server. Icecast is the streaming media server hosted on the Pi that distributes the stream from the Pi to listeners. Listeners can use the stream’s web page as the media player to tune in to the broadcast.

Additionally, we will be using a virtual audio cable to connect output from VLC to BUTT. This will allow us to stream pre-recorded media as well as broadcast live input at the some time.

Set up the Online Radio Toolchain

1. First, install the Apache web server. We need to set up a web server to use with Icecast, the streaming media server. This enables us to access Icecast’s web-based administration interface and host a webpage.

   • From the terminal, update and upgrade the system

     sudo apt update
     sudo apt upgrade

   • Install Apache 2

     sudo apt install apache2

   • You might see a prompt to ask if you want to continue. Type Y for “Yes” and hit Enter
   • Once the installation is complete, you can start the service

     sudo systemctl start apache2

   • Make sure Apache start when you turn on the Pi

     sudo systemctl enable apache2

   • To test if Apache is installed correctly, open http://localhost/ on the Pi’s browser or enter the Pi’s IP address on another computer on the local network. You should see the Apache 2 default welcome page.
     • To find the Pi’s IP address:

       hostname -I

2. Install Icecast2, the media streaming server.

   • Install Icecast2

     sudo apt install icecast2 -y

     • Click Yes on the pop-up that asks if you want to configure Icecast. Don’t change anything, just hit Enter.
   • Let’s edit the Icecast2 configuration file to change the default passwords and server name

     sudo nano /etc/icecast2/icecast.xml

     • I changed the Source Password (used for the source client authentication) and Admin Password (used for authenticating admin features of Icecast) for security. You can read the Icecast Documentation to learn more about basic setup.
   • After updating the configuration file, restart the Icecast2 server and check the status.

     systemctl restart icecast2
     systemctl status icecast2

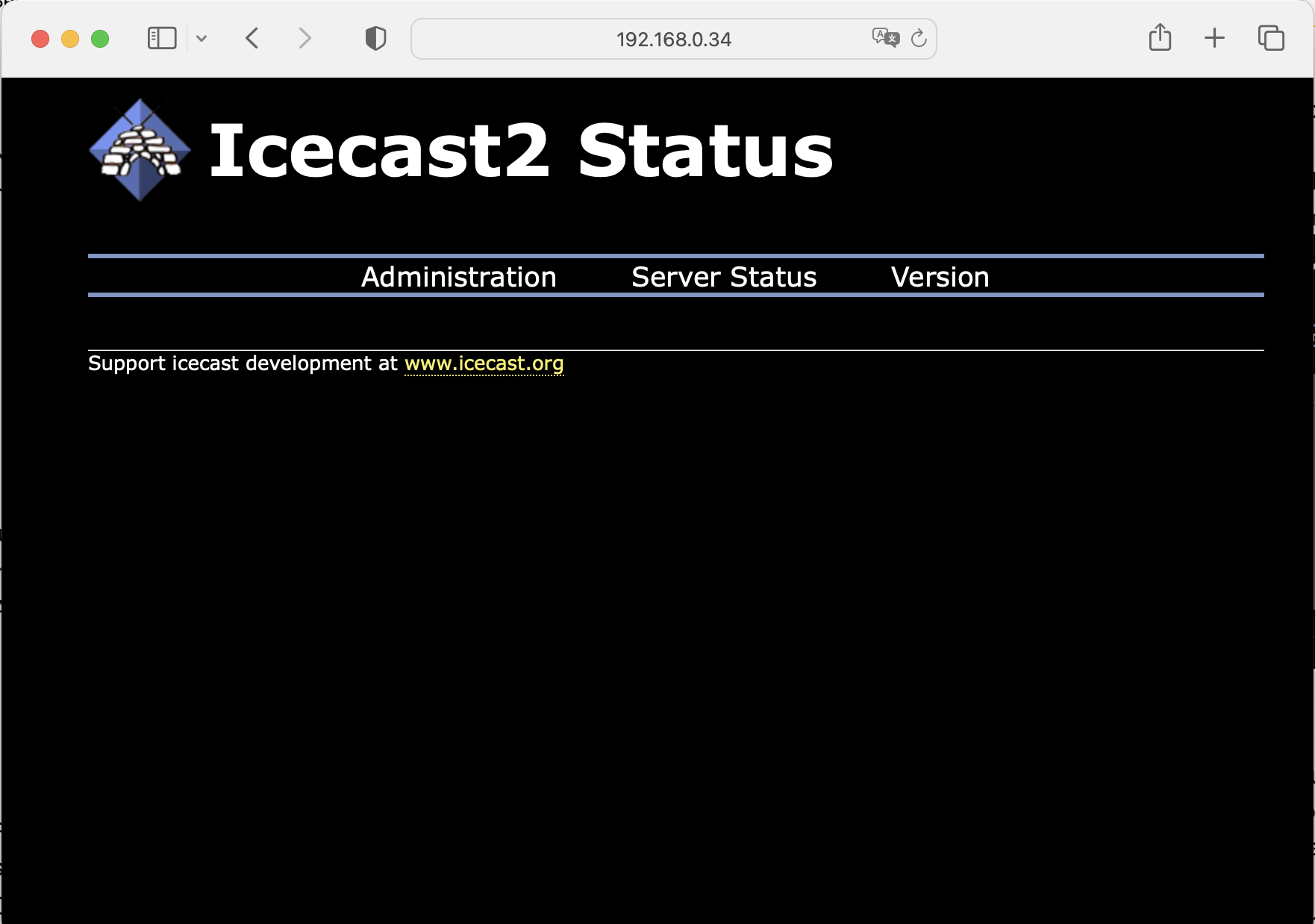

   • Now that we have a web server and Icecast installed, we can access the Icecast stream interface at port 8000 of your Pi. Go to http://192.168.0.34:8000/ (use the IP address of your Pi) to see the status page of your stream. There will be nothing under “Server Status” because you have not started a stream yet. We have to install BUTT or a stream generator software to begin broadcasting.

3. Download and configure BUTT, the stream generator.

   Download Location

   You can download BUTT on your Pi or your computer, depending on where you want to stream audio from. I downloaded it on both but remember that if you use your Pi to stream audio you need a mic for audio input and speakers or headphones for output.

   • Before installing anything, update and upgrade the system

     sudo apt-get update
     sudo apt-get upgrade

   • Choose and download the appropriate source package for your OS from the BUTT site and follow the installation directions on the manual.

     • On the Pi, you can install BUTT
       • Click on the main menu (the raspberry icon in the top left) and go to Preferences > Add/Remove Software.
       • A window with the application catalog will show up. Search for butt. Check the box next to the highlighted package and click Apply. This will install the butt.
       • Once installed, if you go the main menu and hover over Sound & Video you should see butt as an available application.

   • Open BUTT from terminal or by opening the application from the GUI.

     butt

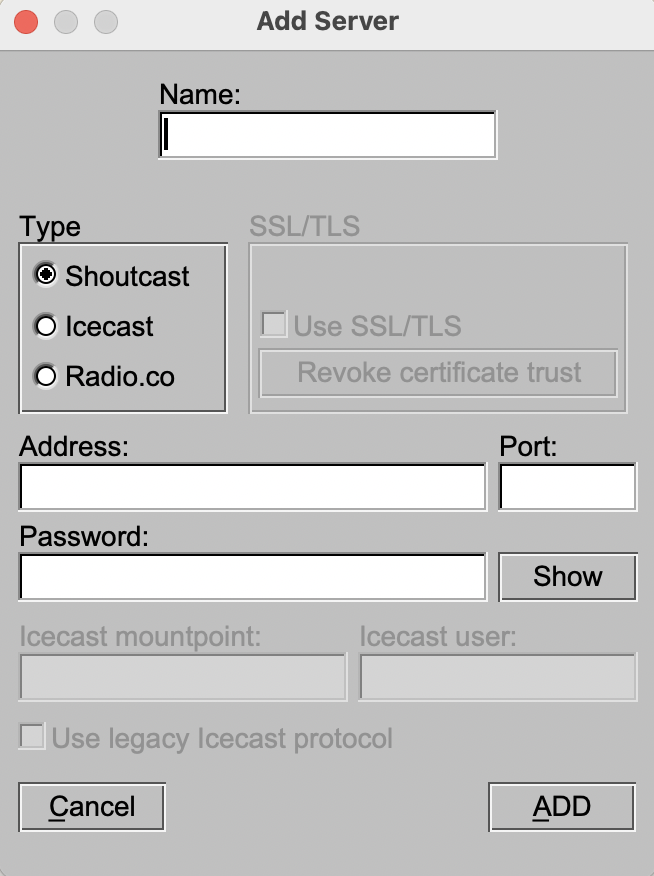

   • Go to Settings > Main > Server Settings > Add to add a server and link your BUTT broadcast to your Icecast2 stream.



     • Name: the name of your radio
     • Address: localhost or the IP address of your Pi
     • Port: 8000 is the default from Icecast2 but use the number at <listen-socket> in the Icecast2 configuration file
     • Password: from <source-password>
     • Icecast mountpoint: stream
     • Icecast user: source

   • Hit the Play button on BUTT to begin the stream

     • Visit the stream at http://localhost:8000/stream or replace localhost with the IP address of your Pi
     • If you are not hearing anything on http://localhost:8000/stream, make sure you have configured the input device on BUTT. Click on Settings, go to the Audio tab, and choose a device under Primary Audio Device.

We're local!

We now have a working local radio. Now you should be able to hear your broadcast from http://localhost:8000/stream. The radio can only be accessed from devices connected to the same local network and not available publicly on the Internet. We have to make some configurations so that listeners can stream the broadcast.

Optional: Stream VLC to BUTT

If you want to stream pre-recorded media, like a playlist, you should connect VLC to BUTT with a virtual audio cable (VAC).

1. Download VLC from the website. Make sure to choose the appropriate package for your operating system.

2. Download VB-Cable VAC from the website. This is currently only available on Windows and MacOS. For Linux, try Jack Audio Connection Kit (JACK).

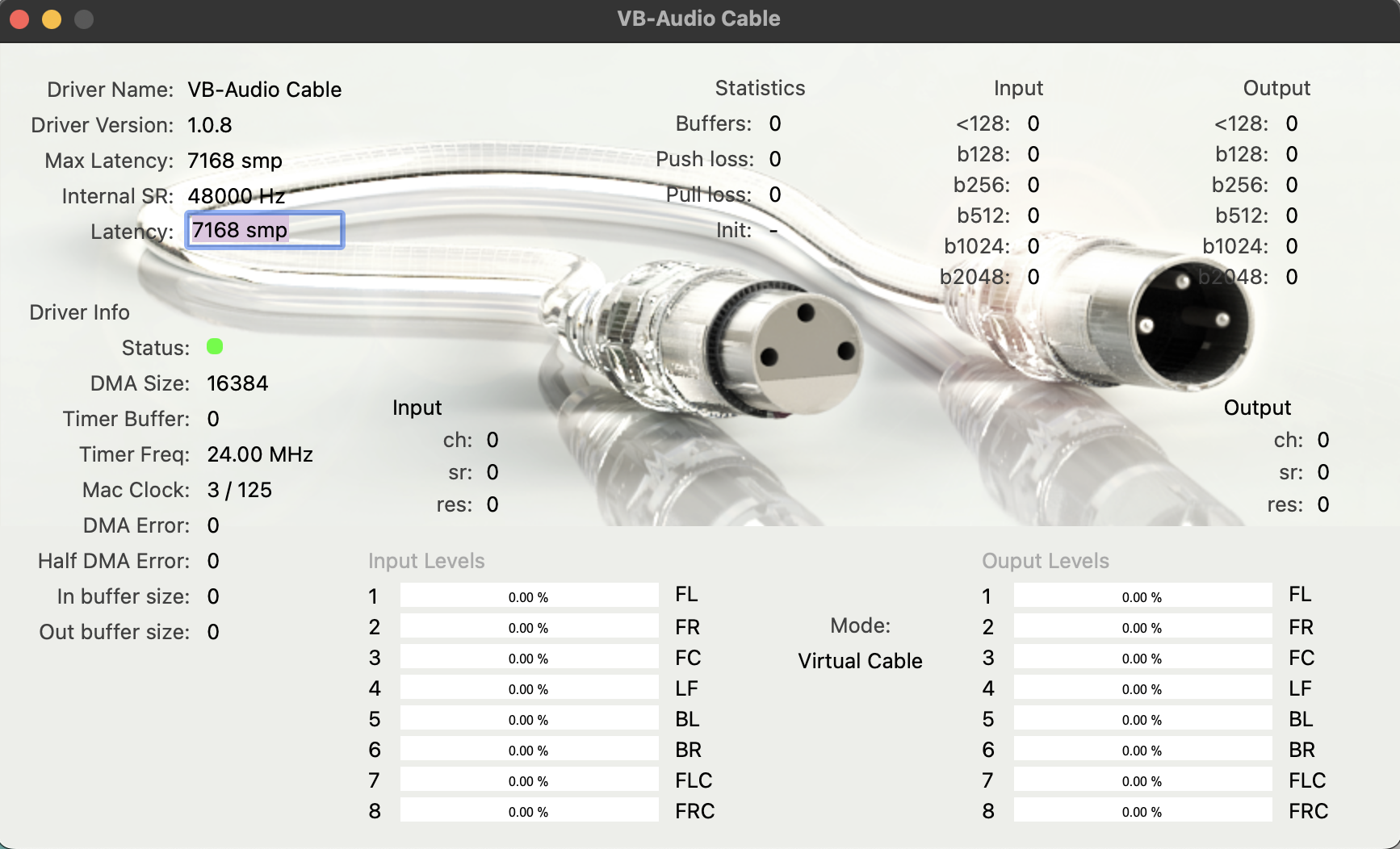

   • Open the VB-Cable application and change Latency to 7168 smp. This will help synchronize the audio from VLC to the Icecast stream so we can hear the media from VLC on the stream.



3. Open VLC and upload some media to the Playlist. Go to Audio > Audio Device and choose VB-Cable or the name of the VAC you are using. This will output the media from VLC to the VAC.

4. Open BUTT and go to Settings > Audio to change the input devices.

   • I chose my Macbook Microphone as the Primary Audio Device and VB-Cable as the Secondary Audio Device. This allows me to stream the media from VLC and my microphone input at the same time. You can set VB-Cable as the only audio device if you only want to stream from VLC.

5. Verify the media is streaming from VLC

   • Start you broadcast from BUTT and go to the link of your stream at http://localhost:8000/stream. You should be able to hear the media from VLC.

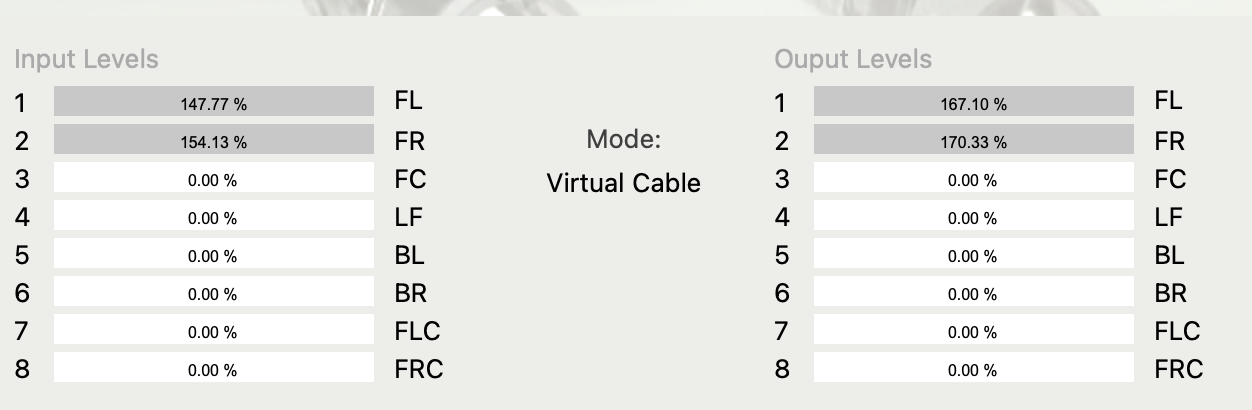

   • You can also view the input and output levels on the VB-Cable dashboard. It should be working fine as long as the numbers are constantly changing.

Optional: Set up SSH

You might find it helpful to set up SSH on your Pi so you can access the computer remotely. SSH lets you control the Pi from your laptop without setting up a monitor.

Follow this guide from Tom's Hardware.

1. Make sure you know our username and password for the Pi. To change the default password:

   passwd

2. Enable SSH

   • Option 01: Enable SSH through the Pi desktop

     • Go to Preferences > Raspberry Pi Configuration
     • Go to the Interfaces tab and toggle on SSH

   • Option 02: Enable SSH from the terminal

     • Open configuration panel from the terminal.

     sudo raspi-config

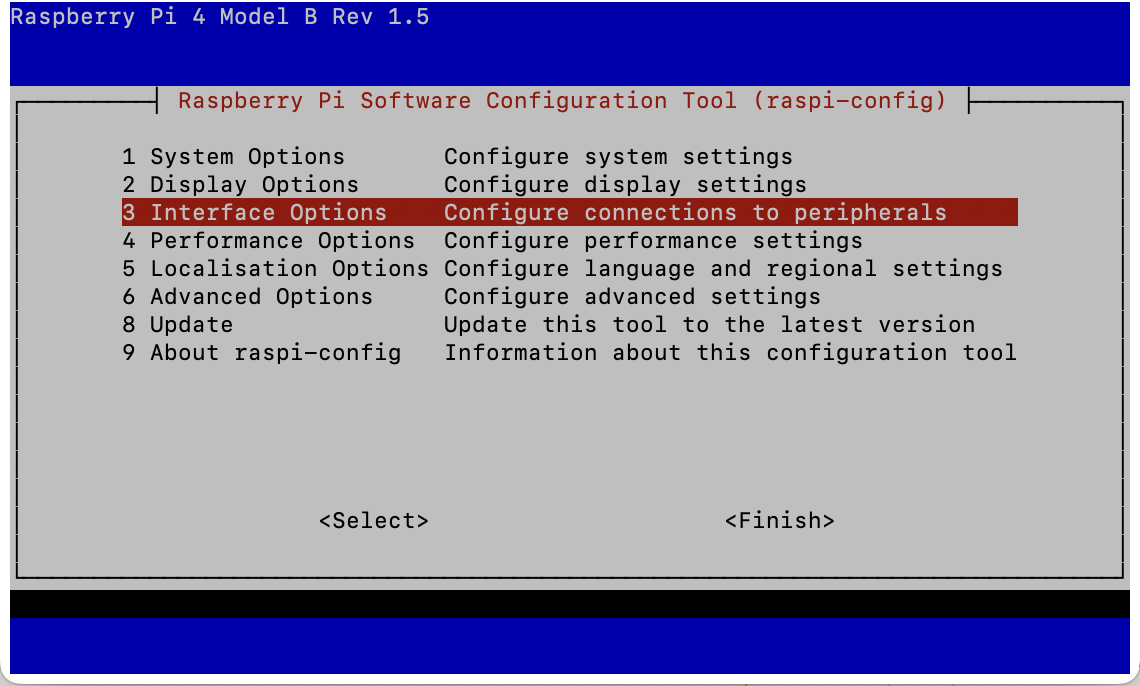

     • Select Interface Options

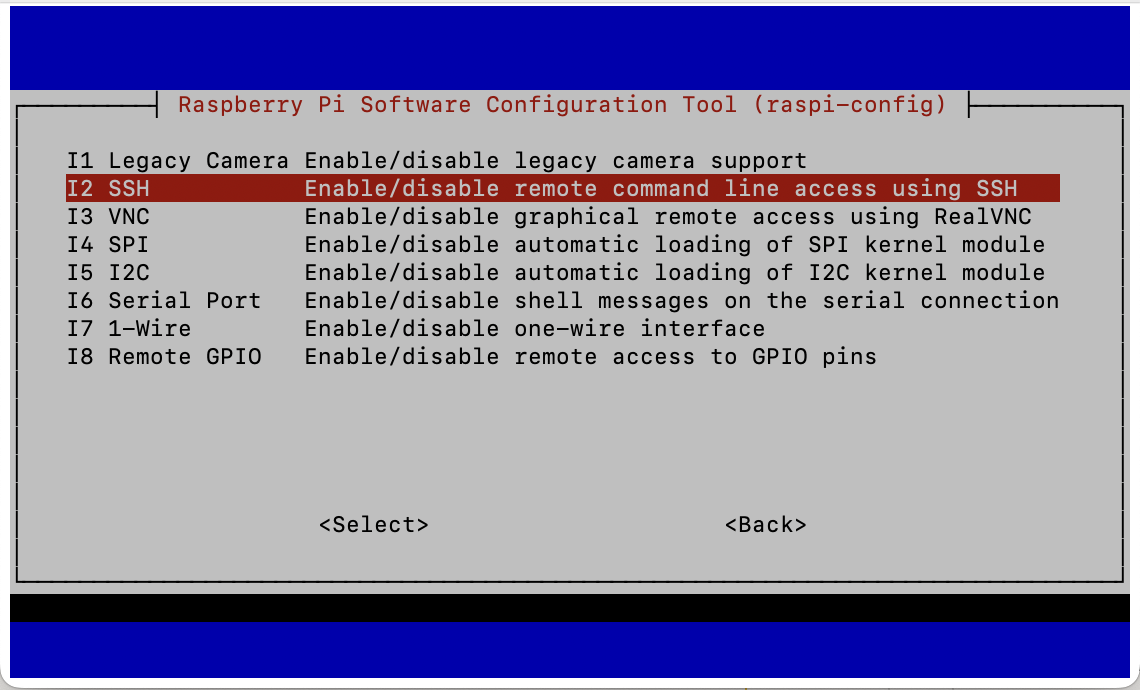

     • Select SSH. Then choose Yes when asked to enable SSH. Hit Enter on the confirmation box.



     • Make sure you select Finish at the end

3. Check if SSH is running. If not, start the SSH service.

   # Check SSH status
   sudo service ssh status

   # Start SSH
   sudo service ssh start

4. Disable Root Login

   Disabling direct root login enhances the security of your system by reducing the risk of unauthorized access. It's recommended to log in as a regular user and then use sudo to perform administrative tasks.

   • In the terminal, open the SSH configuration file.

     nano /etc/ssh/sshd_config

     • Find this line in the document: #PermitRootLogin prohibit-password
     • Replace the line with: #PermitRootLogin no
   • Save the file and restart the SSH server

     sudo systemctl restart sshd

5. Now we should be able to login from another computer on the same network!

   • Open the terminal from the other computer and SSH into the Pi

     ssh username@[address]

   • Replace the username and address with your username and Pi’s IP address (ex ssh april@192.168.0.20).
   • The first time you SSH into your Pi, there will be a prompt that asks you to accept the encryption ket. Accept it.
   • Enter the password to your Pi. It will look like you are not typing anything but your keystrokes are being entered.
   • If successful, you should see something like username@rpi:~ at the beginning of the line in your terminal.

6. To exit out of SSH use:

   exit

Set Up Port Forwarding

If your Raspberry Pi is connected to a router, you’ll need to set up port forwarding to forward external traffic to your Raspberry Pi’s local IP address. I set up port forwarding on 8000 (for Icecast), port 80 (for HTTP), port 22 (for SSH), and port 443 (for HTTPS).

1. Access your router’s settings.
   • Open a web browser and enter your router’s IP address in the address bar. The router’s IP address is usually 192.168.0.1 or 192.168.1.1. If you’re not sure, check your router’s documentation or your ISP. My router had a label on the bottom of the device with the address and settings password.
   • Once you have logged in to the settings page, navigate to the “Port Forwarding” section.
   • Create a new port forwarding rule for each of the four services.

• If your router settings uses port ranges (ex: local start port, local end port, external start port, external end port), just set them all to the same port number.
• Port 8000 is the default port for Icecast. If you changed the port number in your Icecast configuration file, use the port that you specified. This should also be the same port you used in your BUTT settings.

2. To verify that your ports are set up correctly, go to an online port check tool.
   • Enter your router’s public IP address and the port you forwarded and see if it’s connected. You can find your router’s public IP address by through an online IP address checker.

Set up Dynamic DNS (DDNS)

The public IP address assigned to your router is often dynamic, meaning it can change periodically due to actions by your Internet Service Provider (ISP) or when you switch networks. By configuring a Dynamic DNS, you can associate a domain name with your router’s changing public IP address. This makes it easier to maintain the access to your stream.

I provide steps to register with two free DDNS providers, No-IP and DuckDNS. No-IP requires you to manually confirm that the hostname is in use every 30 days while DuckDNS does not require any verification. I found that I ran into more issues with network security using a DuckDNS hostname which is why I switched over to No-IP.

Option 01 - No-ip

No-IP will send you and email every 30 days to confirm that the hostname is still in use. If you do not confirm the hostname is active, your hostname will be deleted.

1. Register with No-IP

   • Create an account on the no-ip website. The sign-up page will ask you to create a hostname (you can also check the box to create one later). Use any hostname you want.
   • When you are logged in to the dashboard, go to the Dynamic DNS tab > No-IP Hostname. If you created a hostname, you should be able to see your hostname on the dashboard. If not, create a hostname.
   • Modify the hostname to add your router’s public IP address as the IP/ Target and make sure the Hostname Type is DNS Hostname A. This will map your hostname to the public IP address of your router, which forwards traffic to your Pi.
     • You can find your router’s public IP address by through an online IP address checker.

2. Configure DDNS on the Raspberry Pi

   Follow No-IP's official documentation.

   • SSH into your Pi or open the terminal on the Pi.
   • Download the Linux DUC, the program that will automatically update the DNS records with your router’s IP address.

     wget https://dmej8g5cpdyqd.cloudfront.net/downloads/noip-duc_3.0.0-beta.7.tar.gz

   • Extract the file

     tar xf noip-duc_3.0.0-beta.7.tar.gz

   • Install the DUC

     cd /home/$USER/noip-duc_3.0.0-beta.7/binaries && sudo apt install ./noip-duc_3.0.0-beta.7_armhf.deb

   • Once it is installed, run the program

     noip-duc -g name.ddns.net -u username -p password

     • Replace name.ddns.net with your hostname.
     • Replace username and password with your email and account password. If your password uses special characters, put it in single quotes (ex: '!Password') to prevent errors.
   • You should see a response with the status about the program. The default behavior of the program is to check the IP of the router every 5 minutes and to update the hostname if the IP changes.

3. Verify DDNS by entering the domain you just set up (ex http://radio.ddns.net) into a web browser. You should see the same web page as when you use your router’s public IP.

Option 02 - Duck DNS

1. Register with Duck DNS

   • Create an account on Duck DNS or sign in with an existing account.

   • Once you are logged in, you will see the section to add a domain. Choose a subdomain name and click Add Domain.



   • You should your router’s public IP address automatically filled next the domain name. You can find your router’s public IP address by through an online IP address checker.

2. Configure DDNS with the Raspberry Pi

   Follow the Duck DNS official documentation. Choose pi as the operating system.

   • SSH into your Pi or open the terminal on your Pi. We will be setting up a script to intermittently check the router’s IP address and to update DuckDNS with any changes.

   • Make a directory for duckdns, and create the script in the directory.

     mkdir duckdns
     cd duckdns
     nano duck.sh

   • In the duck.sh document, add the follow line.

     echo url="https://www.duckdns.org/update?domains=YOUR_DOMAIN&token=YOUR_TOKEN&ip=" | curl -k -o ~/duckdns/duck.log -K -

     • Replace YOUR_DOMAIN with the DuckDNS subdomain associated with your Pi (ex http://radio.duckdns.org).

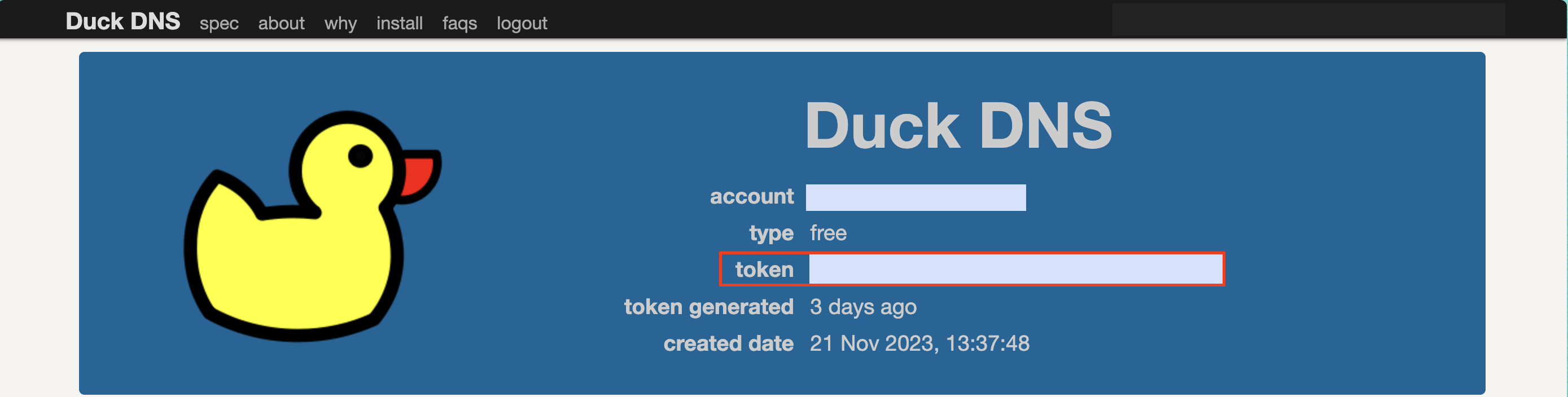

     • Replace YOUR_TOKEN with the token provided on your DuckDNS account page.



     • The API will detect the IP address automatically so there is no need to enter an IP address.

   • Save the file (enter ctrl + X to exit and enter Y to save).

   • Make the script file executable:

     chmod 700 duck.sh

   • Then using cron, we will make the script run every 5 minutes. First, open cron:

     crontab -e

     • Paste the following command at the bottom of the document.

       */5 * * * * ~/duckdns/duck.sh >/dev/null 2>&1

     • Save the file (enter ctrl + X to exit and enter Y to save).

   • You can verify the script is running if the following comand returns a prompt.

     ./duck.sh

   • You can also check the log to see if the last attempt was successful (returns OK).

     cat duck.log

3. Verify DDNS by entering the domain you just set up (ex http://radio.duckdns.org) into a web browser. You should see the same web page as when you use your router’s public IP.

Update Firewall Settings

A firewall is a security system that enhances the security of the Pi by regulating the flow of traffic between the Pi and local network. We have to update the Pi’s firewall rules to allow traffic at specific ports. iptables is the command-line utility uses on a Pi to define the rules for network traffic.

1. Check if iptables is installed from the terminal

   sudo iptables --version

   • If not installed, update packages and install iptables

     sudo apt-get update
     sudo apt-get install iptables

2. Allow the four ports for which we have set up port forwarding.

   sudo iptables -A INPUT -p tcp --dport 8000 -j ACCEPT
   sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT
   sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT
   sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT

3. Save and restart iptables

   sudo service iptables save
   sudo service iptables restart

4. Check the current firewall rules. The output should list the four ports above.

   sudo iptables -L

Optional: Use a Custom Domain

A downside with dynamic DNS hostnames is that they often get blocked by enterprise wifi networks (like school and company networks). This means blocked access to the stream.

One workaround is to buy a custom domain and connect the DDNS hostname to the domain. Using a custom domain associated with a DDNS hostname is not guaranteed to work in all situations, as network administrators can employ various methods to control access. Some domain providers like namecheap.com offer free DDNS services with domain registration so you don’t have to use third-party DDNS services.

1. Purchase a domain on Namecheap

2. Configure Dynamic DNS on the domain in Namecheap

   • Enable Dynamic DNS for the domain

     • For the relevant domain on Domain List, click on Manage > Advanced DNS > Enable the Dynamic DNS toggle.
     • Take a note of the Dynamic DNS Password. You will need this later when configuring the Pi.

   • Create A+Dynamic DNS records. This associates an IP Address with the domain name.

     • Click on Manage for the domain. On the Advanced DNS tab, go to Host records.

     • Click on Add New Record.

       • If you want your stream to be accessed at your-domain.com and www.your-domain.com, add the following records.

         1. Bare domain (your-domain.com)
            • Type: A+ Dynamic DNS Record
            • Host: @
            • Value: 127.0.0.1*
         2. www subdomain ( www.your-domain.com)
            • Type: A+ Dynamic DNS Record
            • Host: www
            • Value: 127.0.0.1*

       • I have main website deployed on Vercel on my base domain and the stream is only accessible on the subdomain stream.domain.com. To set up the record on a subdomain:

         1. Custom subdomain (stream.your-domain.com)
            • Type: A+ Dynamic DNS Record
            • Host: stream
            • Value: 127.0.0.1*

       You can use any IP address for Value. Once the DDNS client is configured, the IP address will be automatically updated.

3. Configure DDNS on Raspberry Pi

   • Like we did above when we set up DDNS, we have to configure a client to update the A record on Namecheap to correct the public IP address.

   • From the Pi’s terminal or via SSH, update packages and install ddclient:

     sudo apt-get update
     sudo apt-get install ddclient

     • An installation pop-up will open. Feel free to enter dummy answers because we will be changing the configuration file manually.

   • Open the configuration file using nano:

     sudo nano /etc/ddclient.conf

   • You will see the answers to the installation pop-up. Replace the file’s content:

     use=web, web=dynamicdns.park-your-domain.com/getip
     protocol=namecheap
     server=dynamicdns.park-your-domain.com
     login=[your-domain.com]
     password=[your namecheap dyndns password]
     [subdomain]

     • Login: replace [your-domain.com] with your domain name
     • Password: use the password from Namecheap under Advanced DNS
     • Subdomain: this is the subdomain that you want to update. Use @ to update the base domain, www for www.domain.com or subdomain for subdomain.domain.com.

   • Exit (CTRL + X)and save the file (Hit Y)

   • Setup the client to run at startup

     sudo systemctl start ddclient.service

4. Update Icecast configuration

   • We have to update the Icecast configuration with the new hostname

   • Before making changes, create a backup of the Icecast configuration file

     # Navigate to configuration file directory
     cd /etc/icecast2/

     # Create a backup of the configuration file
     sudo cp icecast.xml icecast.xml.bak

   • Open the configuration file using nano:

     sudo nano /etc/icecast2/icecast.xml

   • Update the hostname tag with your domain. If you set it up on your subdomain (stream.your-domain.com), then use the subdomain.

     <hostname>your-domain.com</hostname>

   • Exit (CTRL + X)and save the file (Hit Y)

   • Restart Icecast

     sudo service icecast2 restart

   • Now if you go to your-domain.com or stream.subdomain.com, you should see the Icecast status page.

5. Update BUTT

   • We have to update BUTT with the new domain as well
   • Open BUTT and click on Settings. On the Main tab, go to Server Settings and click on Edit
   • Update Address with your domain (or subdomain). Hit Save.
   • Hit play to start streaming. If everything is set up correctly, the BUTT log should say “Connection Established” and you should be able to access your stream at your-domain.com/stream or stream.your-domain.com/stream.

Optional: Set Up SSL

Now that you have a domain, it’s a good idea to set up SSL. When your site has a HTTPS padlock, it enhances security, ensures encryption, and reduces the likelihood of browsers blocking it.

Obtain a certificate

1. Install Cerbot, a client for Let’s Encrypt and a free Certificate Authority. From the terminal, run:

   sudo apt-get update
   sudo apt-get install certbot

2. Obtain an SSL certificate for the domain.

   sudo certbot certonly --standalone -d your-domain.com

   • Remember to replace your-domain.com with your actual domain.

3. Check the certificate for your domain is listed when you run:

   sudo certbot certificates

   • You should see a certificate with your domain name, expiry date, and paths to the certificate and private key.

4. Configure automatic renewal

   • Let’s Encrypt certificates usually expire after 90 days. Cerbot will handle the renewal process but we have to schedule a cron job to automatically renew the certificates.
   • Check Certbot can renew the certificate by running the renewal process:

     sudo certbot renew --dry-run

   • Open crontab to add a job.

     sudo crontab -e

   • At the bottom of the document, add this line to check for renewal twice a day (every 12 hours)

     0 */12 * * * certbot renew

Update icecast

1. Open the Icecast configuration file:

   sudo nano /etc/icecast2/icecast.xml

2. At the bottom of the file, add your SSL certificate details

   <!-- Enable SSL -->
   <ssl>1</ssl>
   <ssl-certificate>/etc/letsencrypt/live/[your-domain.com]/fullchain.pem<ssl-certificate>
   <ssl-private-key>/etc/letsencrypt/live/[your-domain.com]/privkey.pem<ssl-private-key>
   <port>443</port>

   • Replace [your-domain.com] for both the <ssl-certificate> and <ssl-private-key> with the your actual domain.
3. Exit (CTRL + X) and save the changes (Y)
4. Restart Icecast to apply the changes:

   sudo service icecast2 restart

5. You can check your SSL with an online SSL tester.
